Core Value and Machining Advantages
- Precision Machining Ensures Motion Accuracy
Using high‑precision CNC lathes and grinders, we guarantee strict tolerances for bore roundness, cylindricity, inner‑outer ring concentricity, and end‑face perpendicularity. This ensures rotational accuracy of the shaft system, minimizes radial and axial runout, and delivers smooth, low‑vibration operation. - Inherent Self‑Lubrication for Truly Maintenance‑Free Operation
Graphite itself is an excellent solid lubricant. During operation, a stable solid‑lubrication film forms on the bearing’s friction surface, enabling true dry running. This completely eliminates reliance on grease or oil, prevents failures caused by lubrication breakdown, and avoids potential contamination from lubricants. - Exceptional Environmental Adaptability
- Temperature Resistance: Stable operation from –200 °C to +600 °C (up to 3000 °C in non‑oxidizing atmospheres).
- Chemical Corrosion Resistance: Excellent resistance to most acids, alkalis, and organic solvents.
- Electrical Conductivity: Suitable for applications requiring electrostatic dissipation or current conduction.
- Radiation Resistance: Applicable in certain specialized environments.
- Customized Design and Material Enhancement

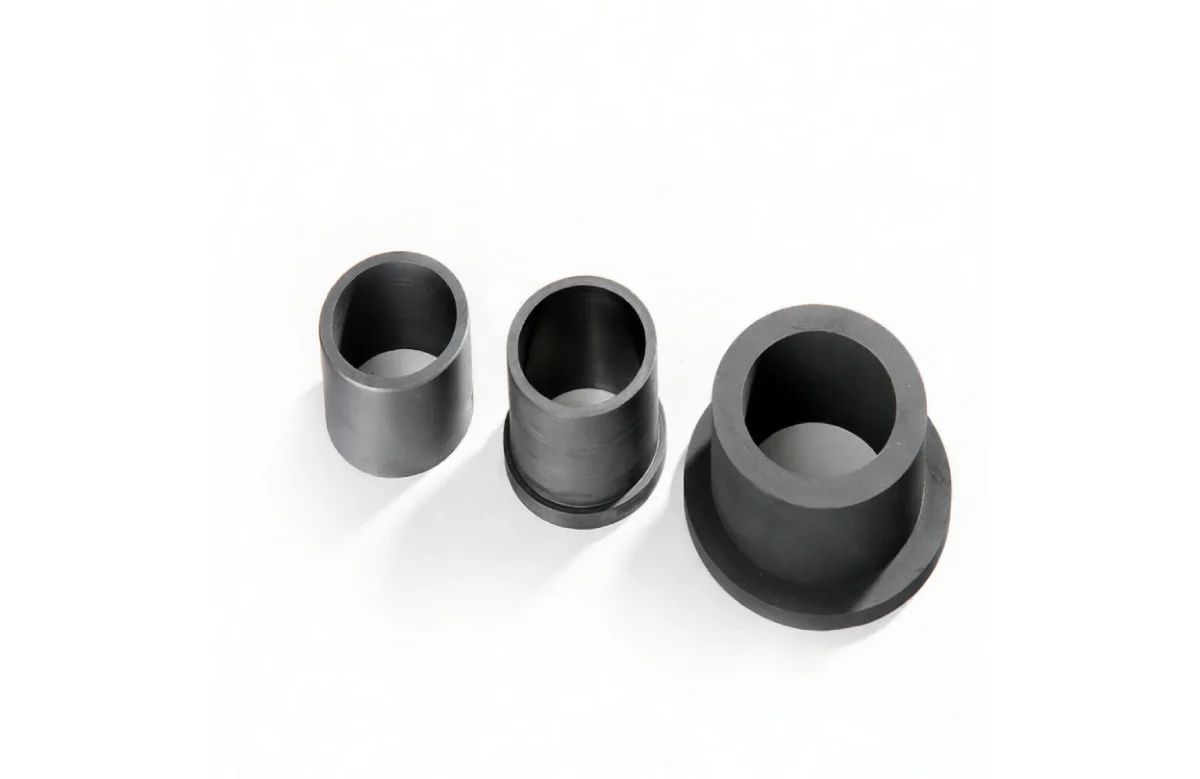

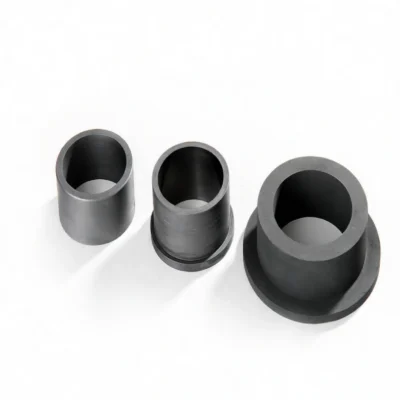

- Structural Variety: Standard bushings, flanged bearings, thrust washers, composite‑insert bearings, etc.
- Material Optimization: Selection of the optimal graphite grade based on load, speed (PV value), and environment; or use of resin/metal/Babbitt impregnation to significantly improve mechanical strength, wear resistance, and limiting PV value.
- Integrated Design: Can be combined with metal housings, cages, or seals to form ready‑to‑install bearing assemblies.
Primary Application Scenarios
- High‑Temperature Industrial Equipment
Used as support bearings for high‑temperature fans, kiln drive rollers, and conveyor belts in heat‑treatment furnaces, solving issues of metal‑bearing seizure and grease carbonization at elevated temperatures. - Chemical and Process Industries
Serve as shaft sleeves and bearings for centrifugal pumps, agitators, and valves in corrosive media, with service life far exceeding that of stainless steel and other metals. - Food, Pharmaceutical, and Packaging Machinery
Bearings for filling machines and conveying equipment in production lines with stringent hygiene requirements—completely free of oil‑contamination risk and compliant with GMP and similar standards. - Vacuum and Semiconductor Equipment
Used to support rotating components in vacuum pumps, coating systems, and crystal‑growth furnaces, meeting requirements for oil‑free vapor and high cleanliness. - Underwater and Special Environments
Suitable for submersible pumps, desalination units, etc., offering corrosion resistance and maintenance‑free operation.
Typical Product Specifications and Services
- Materials: Carbon‑graphite, electro‑graphite, impregnated graphite (resin/metal/special impregnants).
- Machining Precision: Bore tolerance up to H7 grade, cylindricity ≤0.005 mm, surface roughness Ra as low as 0.2 μm.
- Performance Data: Key parameters such as limiting PV value, coefficient of friction, and wear rate for different materials.
- Design and Analysis: Bearing load‑capacity and heat‑dissipation calculations to assist in selection.
- Additional Services: Precision matching and grinding of mating sleeves to ensure optimal clearance.
Why Choose Us?
We understand that bearing failure often means complete equipment shutdown. We are not just manufacturers—we are your partners in tackling motion challenges under extreme conditions. With deep expertise in the tribological properties of graphite bearings and top‑tier precision‑machining capabilities, we deliver not just a part, but a high‑performance motion solution that significantly enhances equipment reliability and reduces total lifecycle cost. Share your operating parameters (temperature, medium, speed, load) or drawings, and we will provide the most professional solution for you.
